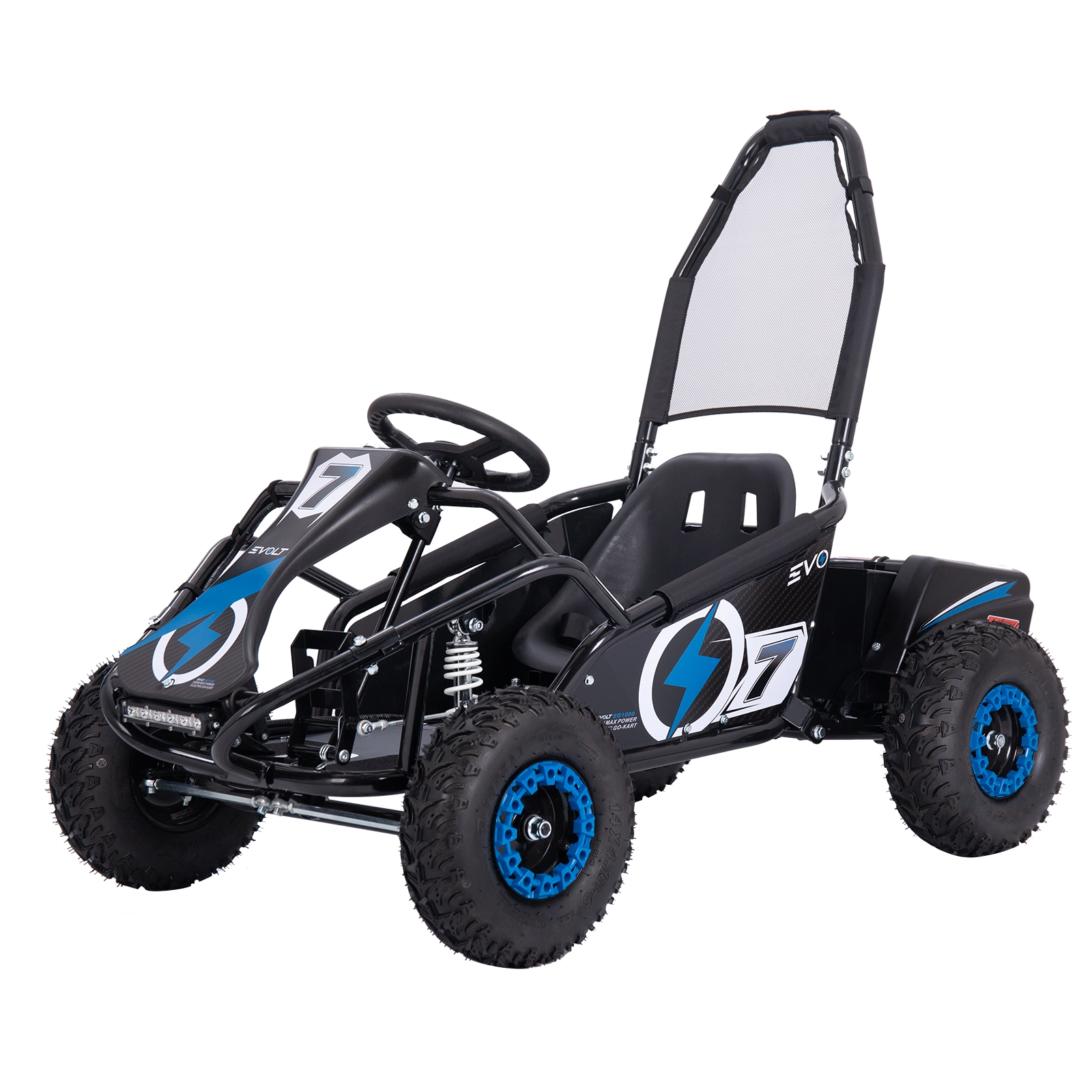

FR5D GK

  • High performance brushless DC motor, up to 1000W;
  • Reverse with gear;
  • High, medium and low third gear speed;
  • The seat height is adjusted to exceed 120mm stroke;
  • Use High performance rear disc brake;
  • Use C & U bearing;
  • Use the KMC chain
  • High quality alloy rear spindle;
  • Wanda/Junkai tires;

Specifications

Vehicle Model name FR5DGK
Engine Type: Permanent magnet brushless motor
Cooling mode /
Number of stroke /
Number of cylinders /
Bore×Stroke: /
Compression Ratio: /
Carburetor: /
Ignition: /
Starting: /
Fuel Type Electric Model
Transmission: F-N-R
Drive Train: Chain drive
Gear Ratio 11.14:1
Max. Power: 1KW
Max. Torque: 5.3N.m
Engine Oil Capacity: /
Transmission Oil Capacity: /
Suspension/Front: double shock absorber
Suspension/Rear: Single shock absorber
Brakes/Front: /
Brakes/Rear: Disc Brake
Tires/Front: 14*4.10-6
Tires/Rear: 14*5.0-6
Overall Size (L×W×H) 1460×840×1080
Seat Height: (mm) 200
Wheelbase: (mm) 924
Ground Clearance: (mm) 130
Battery: 48V12AH Lead Acid
Charger AC100~240V, DC56.4V2A,ETL/UL
Fuel Capacity: /
Dry Weight: 93kg
Gross Weight: 101KG
Max. Load: 68kg
Package Size: 1380×830×520mm
Max. Speed: ≥30km/h
Rims Steel
Muffler Steel
Loading Quantity: 110pcs/40´HQ
Certificates CE, UKCA
Option Parts: Rims Cover
Full Roll cage
48V20AH-Lead-acid batteries
48V20AH-Lithium batteries
Front and back LED lights
Flag
