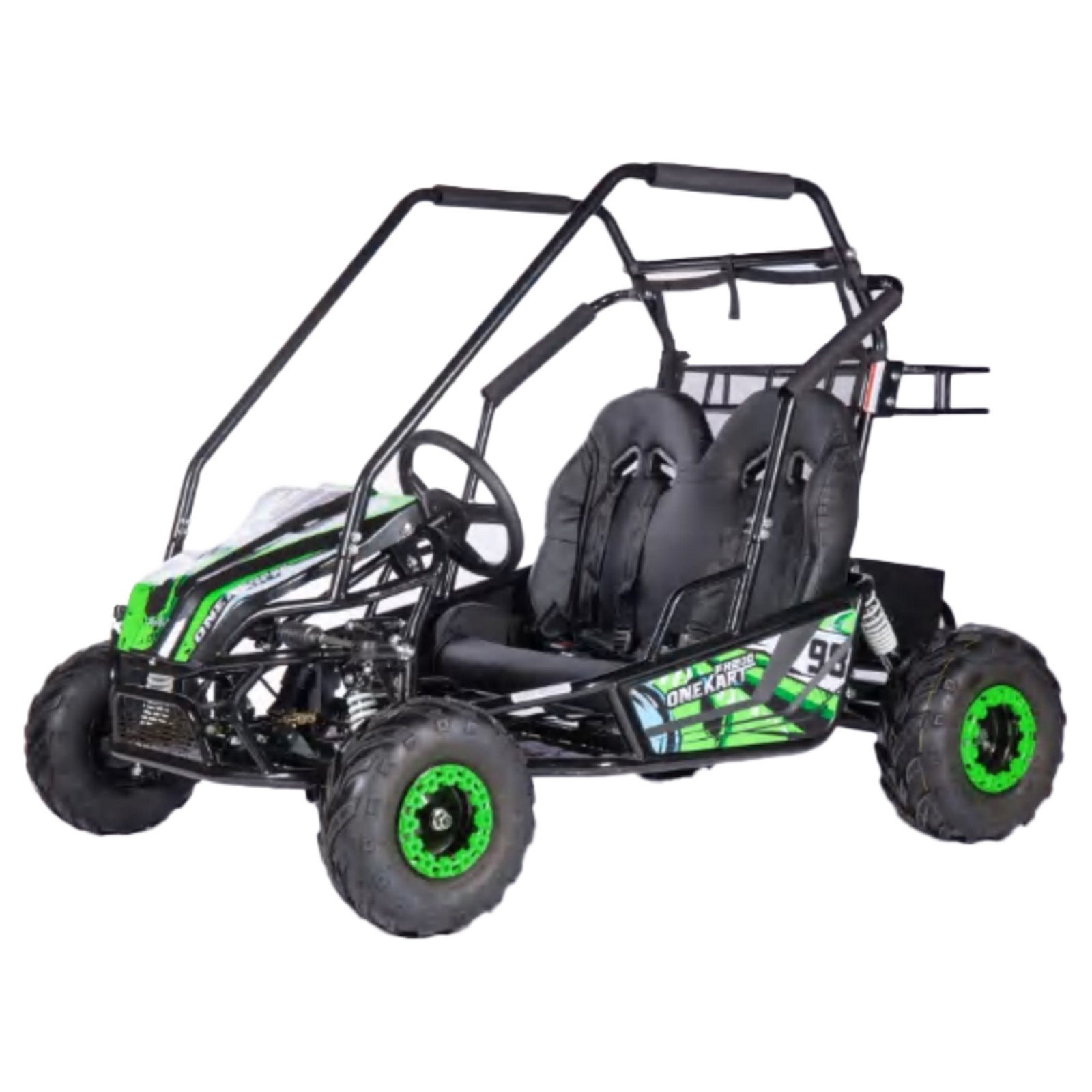

Vehicle Model name: FR20DGK |
Engine Type: Permanent magnet brushless motor |
Fuel Type: Electric Model |
Transmission: Single speed with differential |
Drive Train: Gear |
Gear Ratio: 8.0:1 |
Max. Power: 2KW |
Max. Torque: >25Nm |
Transmission Oil Capacity: 0.6L |
Suspension/Front: Independent double shock absorber |
Suspension/Rear: Double shock absorber |
Brakes/Rear: Disc Brake |
Tires/Front: 145/70-6 |
Tires/Rear: 16*8-7 |
Overall Size (L×W×H): 1735×1150×1210mm |
Seat Height(mm):400 |
Wheelbase(mm):1250 |
Ground Clearance(mm):130 |
Battery: 60V20AH Lead Acid |
Charger:AC100~240V, DC70V3A, ETL/UL |
Dry Weight: 137kg |
Gross Weight:168kg |
Max. Load: 181kg |
Package Size: 1760×1135×615mm |
Max. Speed: ≥32km/h |
Rims:Steel |
Loading Quantity: 52pcs/40´HQ |
Certificates:CE, UKCA |
