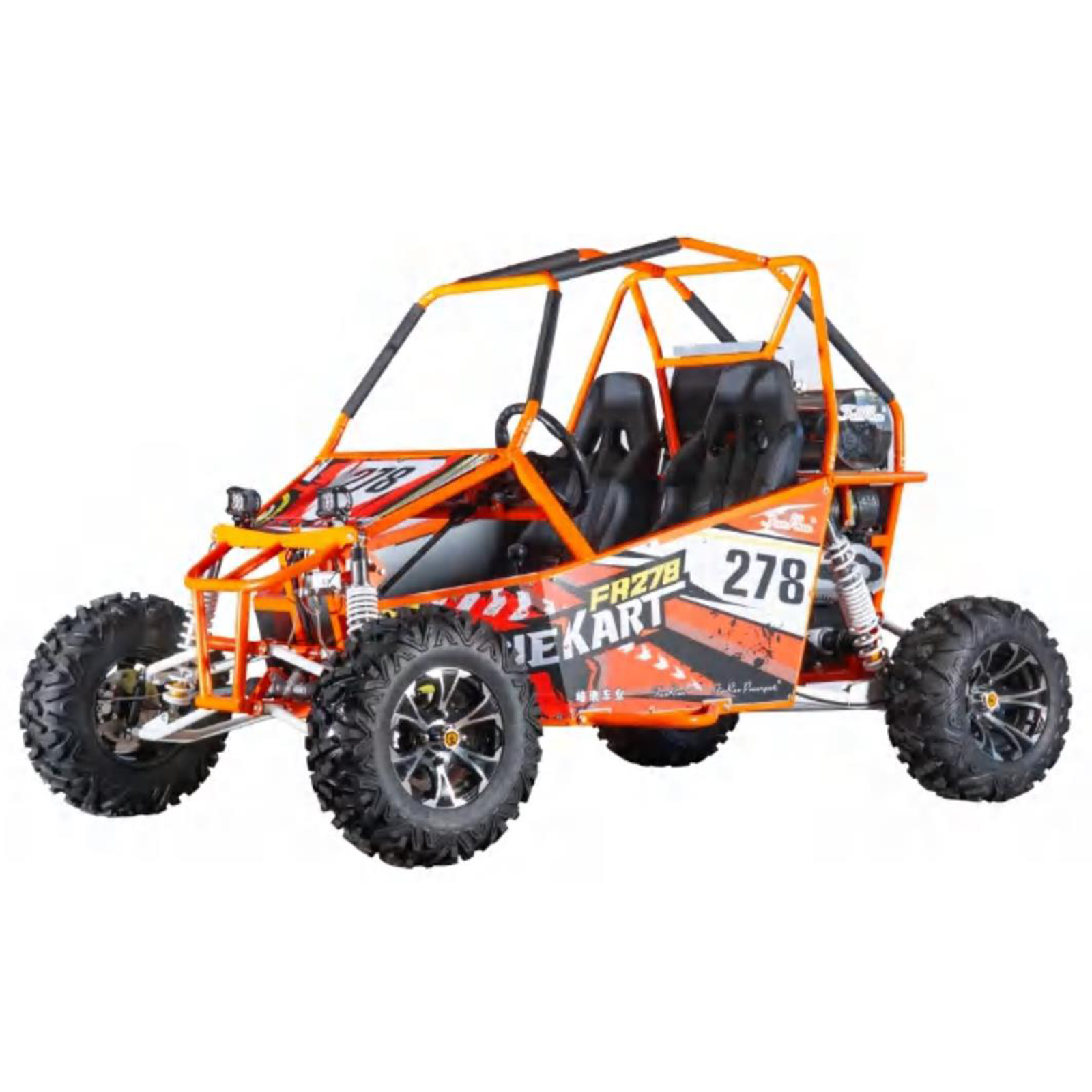

Vehicle Model name: FR278GK
Engine Type: JL173F (278CC)
Cooling mode: Water cooled
Number of stroke: 4-stroke
Number of cylinders: 1-cylinder
Bore × Stroke: φ72.8×66.8
Compression Ratio: 10:1
Ignition: CDI
Starting: Electric start
Fuel Type: Gasoline
Transmission: CVT + F-N-R
Drive Train: Chain drive
Gear Ratio: 7.5: 1
Max. Power: 13.2kw/6500r/min
Max. Torque: 22N·m/5000r/min
Engine Oil Capacity: 1.0L
Transmission Oil Capacity: 0.4L
Suspension/Front: Independent double shock absorber
Suspension/Rear: Independent double shock absorber
Brakes/Front: Disc Brake
Brakes/Rear: Disc Brake
Tires/Front: 24*9-12
Tires/Rear: 23*10.5*12
Overall Size (L×W×H): 2620×1650×1620mm
Seat Height(mm) : 600
Wheelbase (mm) : 1940
Ground Clearance(mm): 250
Fuel Capacity: 25L
Dry Weight: 330kg
Gross Weight: 400kg
Max. Load: 200kg
Package Size: 2230×1650×120mm
Max. Speed: ≥60km/h
Rims: AL
Muffler: AL
Loading Quantity: 24pcs/40´HQ
Certificates: CE, UKCA
