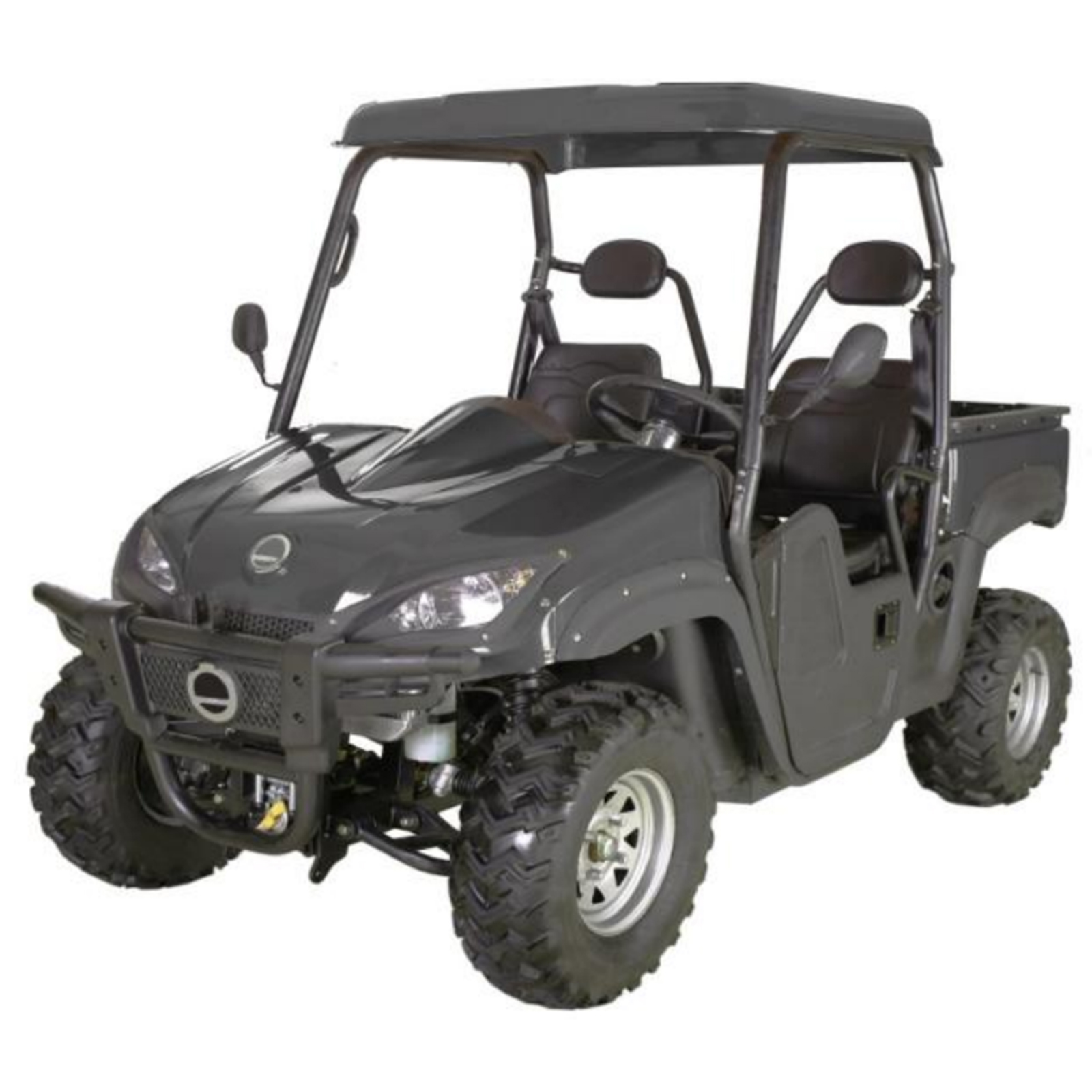

| Vehicle Model name: FR50DUTV |
| Engine Type: 60V AC asynchronous motor |
| Ignition: Controller 60V350A |
| Fuel Type: Electric Model |
| Transmission: F-N-R |
| Drive Train: Shaft drive 2WD |
| Gear Ratio: 1: 12.4 |
| Max. Power: MAX 11.8KW（5KW Rated） |
| Max. Torque: 79N·m |
| Suspension/Front: Macpherson Independent |
| Suspension/Rear: Independent double shock absorber |
| Brakes/Front: Disc Brake |
| Brakes/Rear: Disc Brake |
| Tires/Front: 25*9-12 |
| Tires/Rear: 25*10.5-12 |
| Overall Size (L×W×H): 2650×1480×1900MM |
| Seat Height: 850MM |
| Wheelbase: 1820MM |
| Ground Clearance: 250MM |
| Battery: 60V120AH Lead Acid |
| Charger: AC100~240V, DC60V15A, ETL/UL |
| Fuel Capacity: Range 60Km |
| Dry Weight: 520kg |
| Gross Weight: 580kg |
| Max. Load: 300kg |
| Package Size: 2230×1350×850mm |
| Max. Speed: ≥38km/h |
| Rims: Steel |
| Muffler: Steel |
| Loading Quantity: 24pcs/40´HQ |
| Certificates: CE, UKCA |
