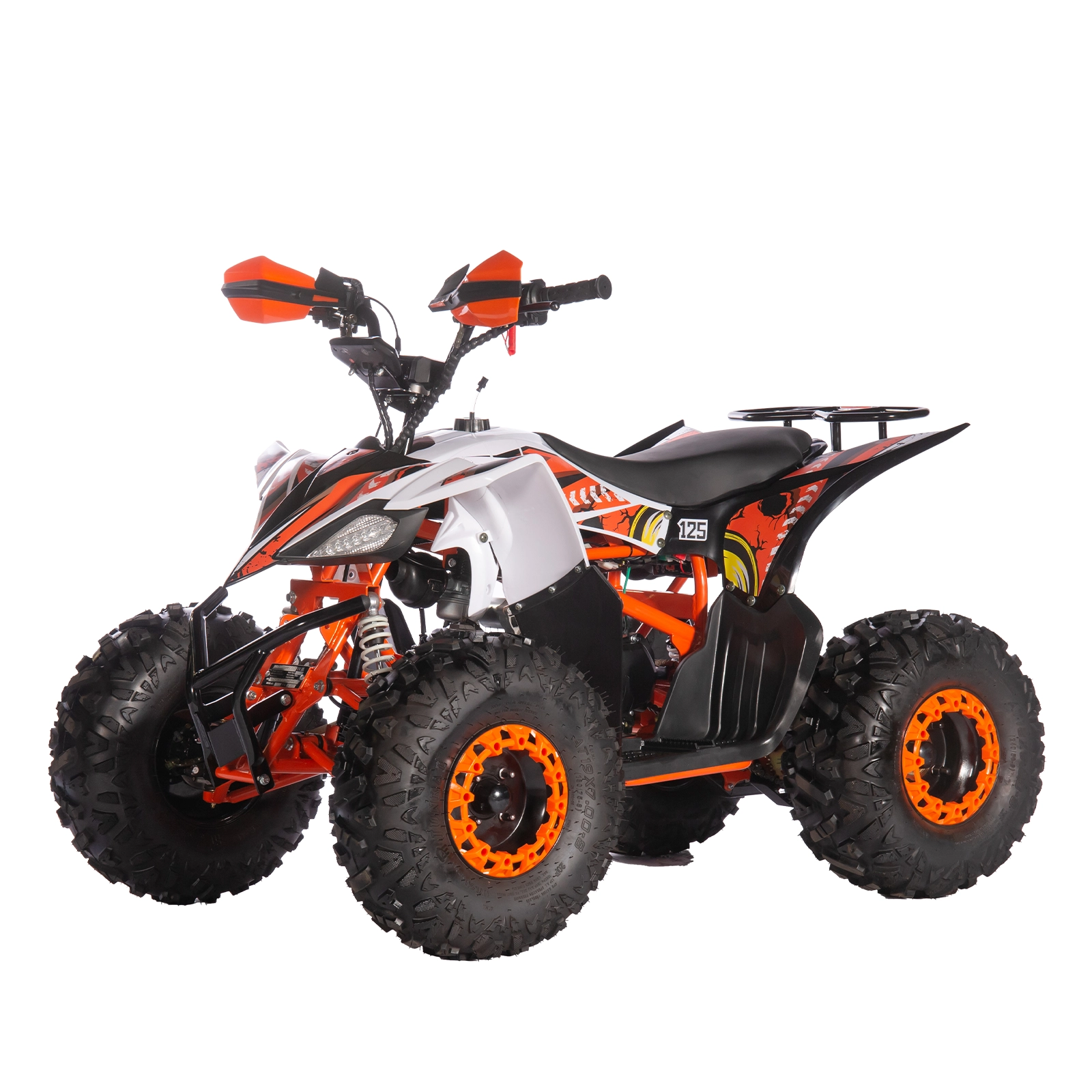

FR125ATV-SP Orange

  •  Hengsheng 120CC engine with damping rubber;
  • Use KUNFU PZ22 carburetor;
  • High flow paper air filter element;
  • High performance disc brakes are used at the front and rear;
  • Use C&U bearing;
  • Use KMC chain;
  • High quality alloy rear spindle;
  • JUNKAI tire (8-inch A-pattern);
  • Use forged rocker arm ball joint;
  • The movable parts such as rocker arm and spacer sleeve are equipped with grease fittings;
  • The rear is reduced to aluminum alloy inverted airbag for shock absorption;
  • Front and rear LED lights, (, LED headlights, LED tail lights);
  • Beautiful front and rear shelves; (Optional)
  • Silencer with fireproof cover;
  • High performance Guyue starting battery;
  • Increase the front guard bar;
  • Multi function LCD instrument (optional)

Specifications

Vehicle Model FR125ATV-SP
Engine Type: 154FM (120CC)
Cooling mode Air cooled
Number of stroke 4-stroke
Number of cylinders 1-cylinder
Bore×Stroke: φ54×54
Compression Ratio: 9.0:1
Carburetor: PZ22
Ignition: CDI
Starting:  Electrical start
Fuel Type Gasoline
Transmission: F-N-R
Drive Train: Chain drive
Gear Ratio 41:13
Max. Power: 6.0KW/7500±500
Max. Torque: 9.5Nm/5500±500
Engine Oil Capacity: 0.9L
Transmission Oil Capacity: /
Suspension/Front: Independent double shock absorber
Suspension/Rear: Single shock absorber
Brakes/Front: Disc Brake
Brakes/Rear: Disc Brake
Tires/Front: 19×7-8
Tires/Rear: 18×9.5-8
Overall Size (L×W×H) 1465×920×960mm
Seat Height: 410mm
Wheelbase: 950mm
Ground Clearance: 120mm
Battery: 12V5Ah
Charger /
Fuel Capacity: 2.8L
Dry Weight: 110kg
Gross Weight: 130KG
Max. Load: 90kg
Package Size: 1310×770×640mm
Max. Speed: ≥40km/h
Rims Steel
Muffler Steel
Loading Quantity: 108pcs/40´HQ
Certificates CE, UKCA, EPA
Option Parts: EPA
Rims Cover
Remote Control/Alarm
Aluminum Rims
 LCD Meter
Handguard
Front Cargo
3+1 gearbox
Flag
Handbar heat
