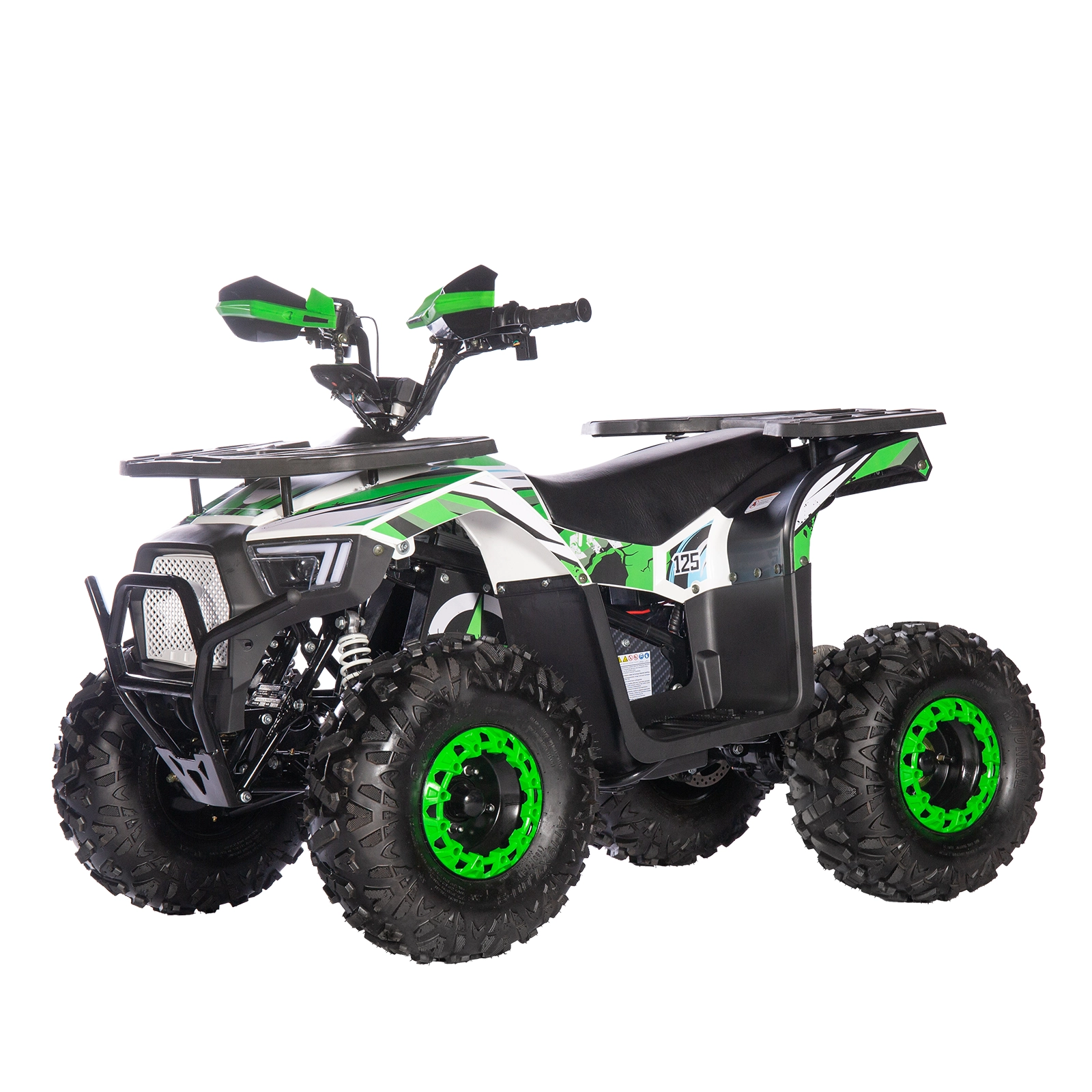

FR20DATV-UT Green

  • 60V20AH maintenance free battery;
  • 10:1 Increase the modulus differential;
  • High torque, silent permanent magnet synchronous motor;
  • 18 tube high-performance controller;
  • High performance disc brakes are used at the front and rear;
  • Use C&U bearing;
  • JUNKAI tire (8-inch A-pattern);
  • Use forged rocker arm ball joint;
  • The movable parts such as rocker arm and spacer sleeve are equipped with grease fittings;
  • The rear is reduced to aluminum alloy inverted airbag for shock absorption;
  • Front and rear LED lights (LED daytime driving lights, LED headlights, LED tail lights, LED turn signals);
  • Beautiful front and rear shelves;
  • Increase the front guard bar;
  • Multi function LCD instrument (optional).

Specifications

Vehicle Model FR20DATV-UT
Engine Type: Permanent magnet brushless motor
Cooling mode /
Number of stroke /
Number of cylinders /
Bore×Stroke: /
Compression Ratio: /
Carburetor: /
Ignition: /
Starting: /
Fuel Type Electric Model
Transmission: Single speed with differential
Drive Train: Gear
Gear Ratio 8:1
Max. Power: 2KW
Max. Torque: >25Nm
Engine Oil Capacity: /
Transmission Oil Capacity: 0.6L
Suspension/Front: Independent double shock absorber
Suspension/Rear: Single shock absorber
Brakes/Front: Disc Brake
Brakes/Rear: Disc Brake
Tires/Front: 19×7-8
Tires/Rear: 18×9.5-8
Overall Size (L×W×H) 1430×920×1000mm
Seat Height: 410mm
Wheelbase: 950mm
Ground Clearance: 120mm
Battery: 60V20Ah Lead Acid
Charger AC100~240V, DC67V3A,ETL/UL
Fuel Capacity: /
Dry Weight: 150kg
Gross Weight: 175KG
Max. Load: 90kg
Package Size: 1380×770×640mm
Max. Speed: ≥32km/h
Rims Steel
Muffler Steel
Loading Quantity: 92pcs/40´HQ
Certificates CE, UKCA
Option Parts: Rims Cover
Remote Control/Alarm
Aluminum Rims
LCD Meter
Handguard
Front Cargo
60V5A
60V20AH lith-ion battery
Flag
