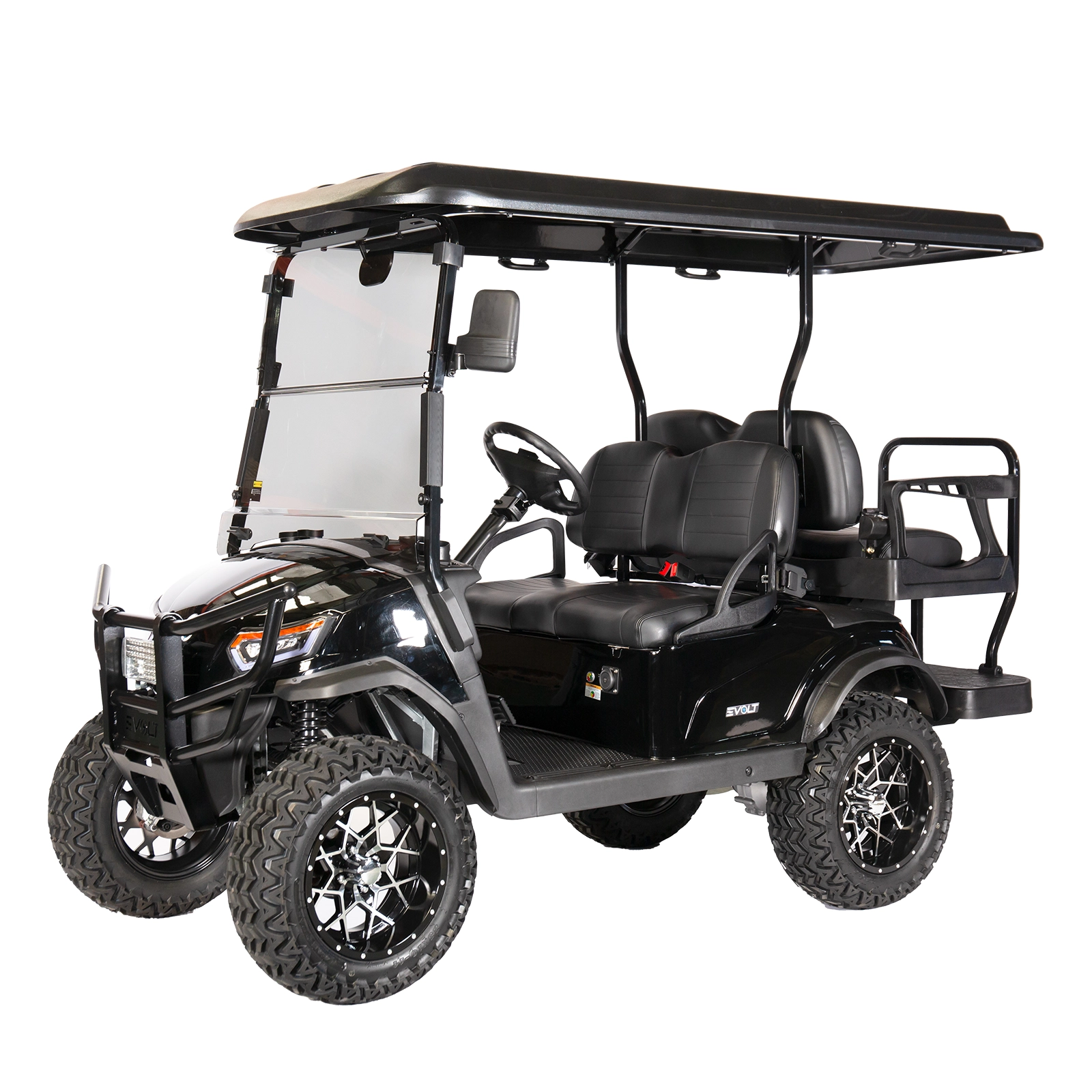

Vehicle Model name: FR50DGOLF-2
Exterior color: Black
Voltage: DC48V
Power of motor: 5kw
Gear Ratio: 12.3:1
Battery: 48V 105AH lithium battery
Charger: American standard charger
Accelerator: Hall accelerator 0-4.7V
Rated load: 370 kg
Vehicle weight: 440 kg
Overall Size (L×W×H): 2870×1250×1930mm
Number of passengers: 4 persons
Ground Clearance: 185 mm
Wheelbase: 1670 mm
Front /Rear track width: Front 960mm/Rea1045mm
Max. Speed: 32 km/h
Endurance Mileage: 80 – 100 km (no load)
Turning radius: 2900 mm
Suspension/Front: Macpherson Independent Suspension
Suspension/Rear: Plate Spring of Variable Cross-section and Damper
brake system: Mechanical brake and parking brake
Braking distance: ≤3000 mm
Tire: 23 x 10-14 (four ply tread)
Rim: 14 inch black aluminum rim
Seat: Deluxe black seats
