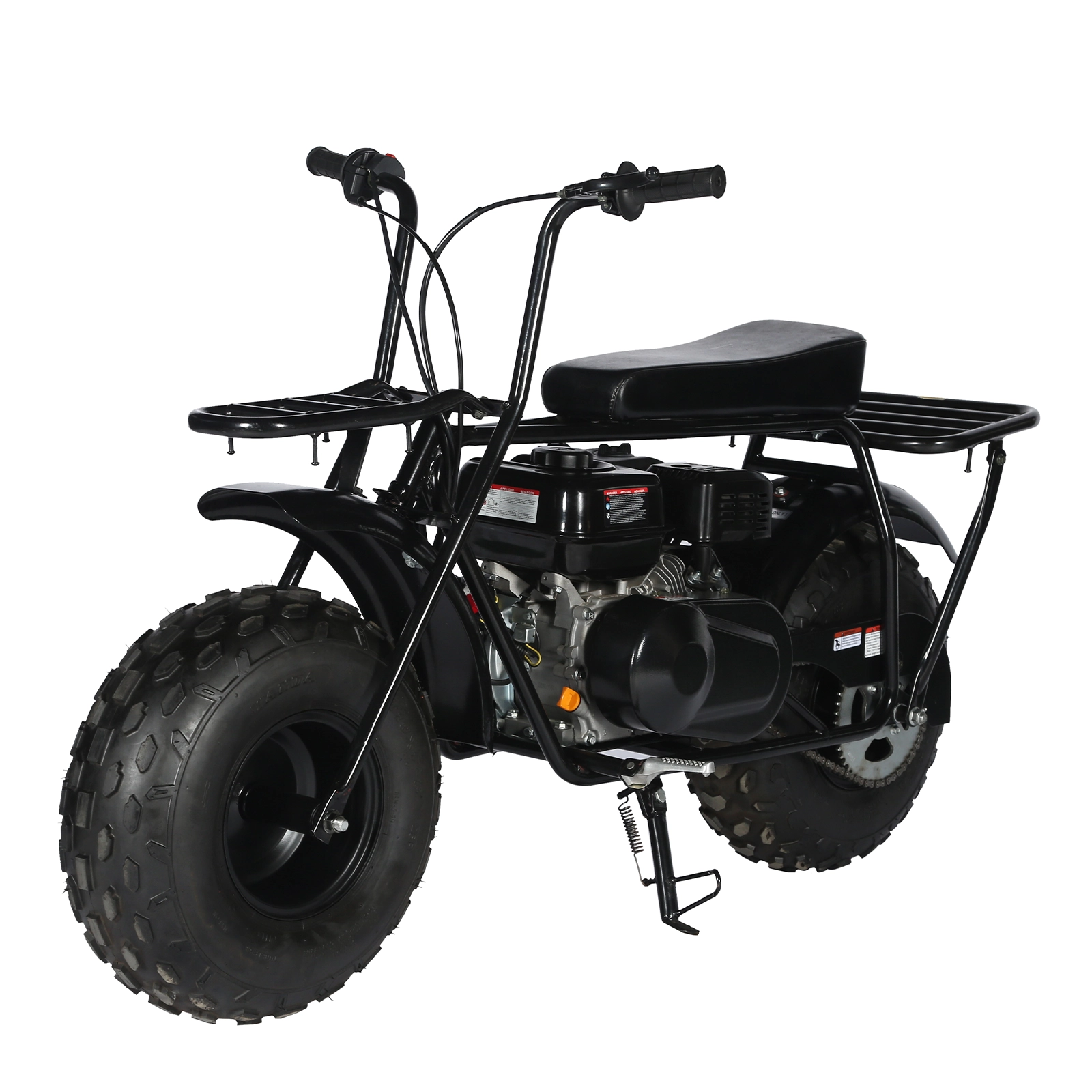

Vehicle Model name: FR200UMB
Engine Type: DK170F (212CC)
Cooling mode: Fan cooled
Number of stroke: 4-stroke
Number of cylinders: 1-cylinder
Bore × Stroke: φ70×55
Compression Ratio: 8.5:1
Ignition: CDI
Starting: Pull start
Fuel Type: Gasoline
Transmission: CVT
Drive Train: Chain drive
Gear Ratio: 7.5: 1
Max. Power: 4.0kw/3600r/min
Max. Torque: 12N·m/2500r/min
Engine Oil Capacity: 0.45L
Brakes/Rear: Drum Brake
Tires/Front: 19×7-8
Tires/Rear: 19×7-8
Overall Size (L×W×H): 1450×680×930 mm
Seat Height: 650 mm
Wheelbase: 1050mm
Ground Clearance: 150mm
Fuel Capacity: 2.8L
Dry Weight: 55kg
Gross Weight: 68kg
Max. Load: 91kg
Package Size: 1180×500×770mm
Max. Speed: ≥35km/h
Rims: Steel
Muffler: Steel
Loading Quantity: 123pcs/40´HQ
Certificates: CE, UKCA, EPA
