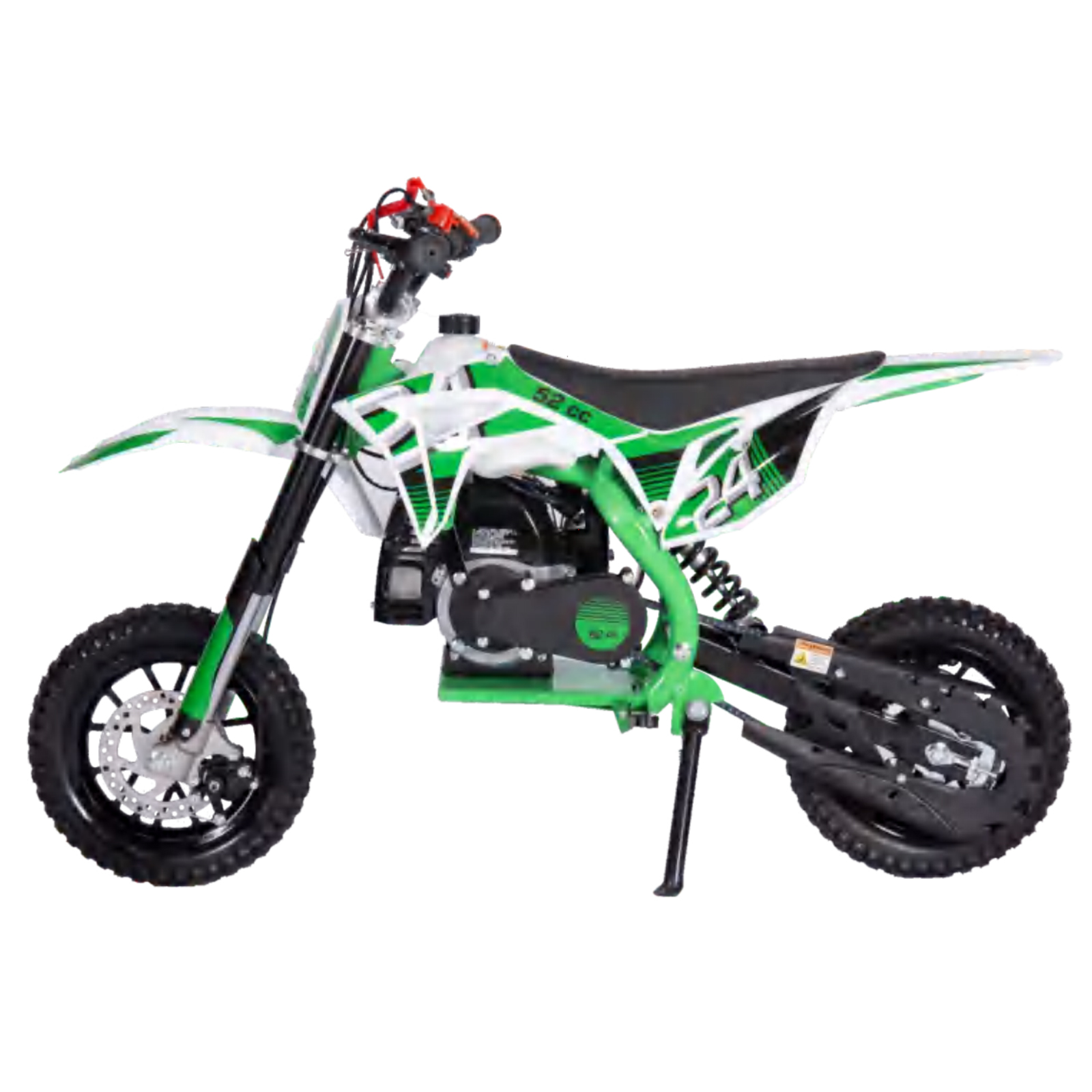

Vehicle Model name: FR52DB
Engine Type: DK139F (52CC)
Cooling mode: Fan cooled
Number of stroke: 2-stroke
Number of cylinders: 1-cylinder
Compression Ratio: 7.5:1
Ignition: CDI
Starting: Pull start
Fuel Type: Gasoline and oil Mixed 25:1
Transmission: Automatic Clutch
Drive Train: Chain drive
Gear Ratio: Nov-54
Max. Power: 1.5kw/7500r/min
Max. Torque: 2.5N.m/5500r/min
Suspension/Front: Hydraulic, Conventional
Suspension/Rear: Single Shock
Brakes/Front: Disc Brake
Brakes/Rear: Disc Brake
Tires/Front: 12.5×2.75
Tires/Rear: 12.5×2.75
Overall Size (L×W×H) : 1120×560×740mm
Seat Height: 558mm
Wheelbase: 850mm
Ground Clearance: 203mm
Fuel Capacity: 1.1L
Dry Weight: 19Kg
Gross Weight: 22Kg
Max. Load: 68kg
Package Size: 890×280×560mm
Max. Speed: ≥30km/h
Rims: AL
Muffler: Steel
Loading Quantity: 430pcs/40´HQ
Certificates: CE, UKCA, EPA
